đź‘‹ Setup your Wappsto:bit

Candy and alarm clock

Are you ready?

For the best experience, download the Wappsto APP on your smartphone, this makes it SUPER easy to connect and use your Wappsto:bit!

Get the APP on Google Play Store or Apple APP Store

1. Power-up your Wappsto:bit

Step by step guide

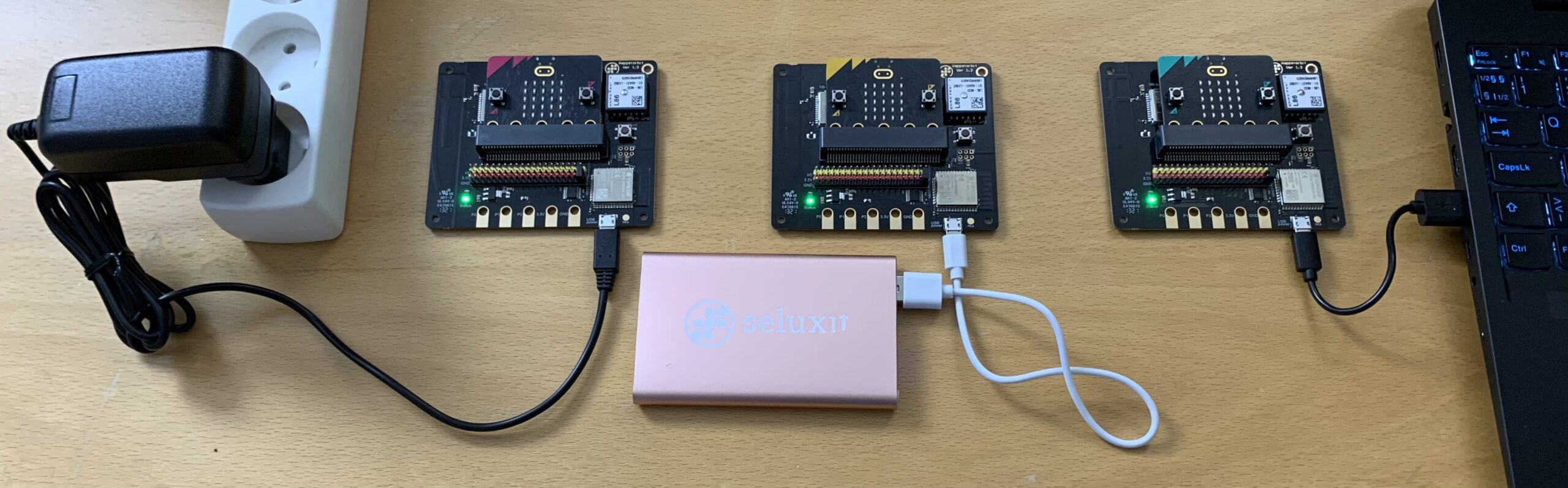

Step 1: Prepare Power supply and cable
Power supply: You could use a powerbank, a laptop or a wall-plug power supply. It just needs to supply between 4,5 and 5,5V, which most power supplies do.
Cable:You will need a Micro USB cable, it’s the same type as the cable you use for micro:bit programming.

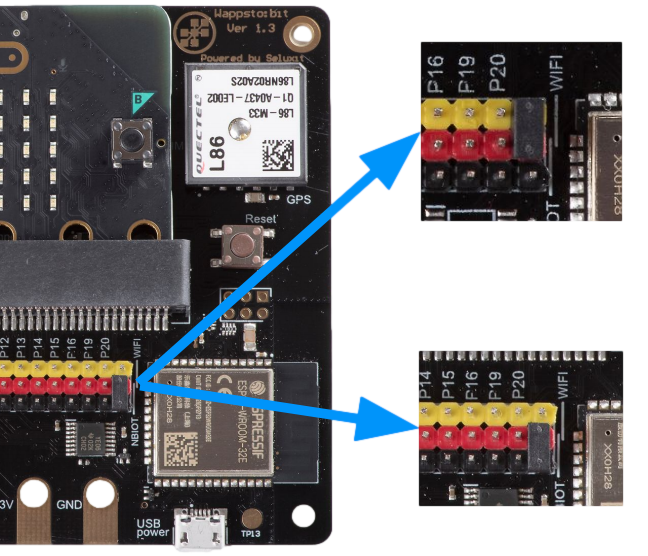

Step 2: Choose connectivity mode
Do you want connect with Wi-Fi or 5G NB-IoT?
Make sure the “Jumper” on the far right is on the yellow and red pins for Wi-Fi mode, or red and black pins for 5G NB-IoT mode.

Step 3: Power-up! Now you can see what your Wappsto:bit is up to, based on the LED indicator.
If you don’t get any light in the LED indicator, try another power supply.

LED indicator:
⬤ Off
⬤ Starting
⬤ Bluetooth on
– in Wi-Fi mode: Ready for Wi-Fi setup through the Wappsto APP
– in NB-IoT mode: Connecting
⬤ Connected to Wappsto and ready for use
⬤ Updating firmware (only possible in Wi-Fi mode)

2.1. Connect your Wappsto:bit to Wi-Fi

Video tutorial

Step by step guide

Step 1: Make sure your Wappsto:bit is set to Wi-Fi mode

Step 2: Power-up – LED indicator should turn blue

Step 3: Log into the Wappsto APP

Step 4: Press + in the top right corner

Step 5: Press “Add and configure Wi-Fi”

Step 6: Choose your Wappsto:bit (If you don’t see it, make sure it is properly turned on and with a blue LED)

Step 7: Select Wi-Fi network

Step 8: Input Wi-Fi password

Step 9: Wait a little 🙂

Step 10: Congratulations! You are now connected and ready for projects

2.2. Connect your Wappsto:bit with 5G NB-IoT

Video tutorial

Step by step guide

Step 1: Make sure your Wappsto:bit is set to 5G NB-IoT mode

Step 2: Power-up – LED indicator should turn green

Step 3: Log into the Wappsto APP

Step 4: Press + in the top right corner

Step 5: Press “Add via QR code (UUID)”

Step 6: Scan the QR code on the back of your Wappsto:bit

Step 7: Press “Add” to confirm

Step 8: Congratulations! You are now connected and ready for projects

Super! Now you are are connected to Wappsto and ready to start awesome projects!

Learn together with Wappsto:bit

Start experimenting with fun projects
